Introduction
A forklift's mast is the vertical backbone of the entire machine. It's the front-mounted assembly that raises, lowers, and positions every load you move, and it shapes almost every operational decision you make afterward.
Get the mast wrong, and you'll feel it immediately: pallets that won't clear the top rack, a truck that can't fit through the trailer door, or a capacity plate that doesn't match the job. Mast selection affects warehouse storage density, trailer and container access, overhead clearance, operator visibility, and total purchase cost.
This guide breaks down the four common mast types, explains the height terminology you'll see on spec sheets, and walks through the practical factors to check before you buy — whether new, used, or reconditioned.
Key Takeaways
- Masts fall into four categories: simplex, duplex, triplex, and quad, based on stage count.
- Maximum fork height is one spec among several: free lift, lowered height, and capacity all matter.
- Duplex masts suit lower stacking and trailer work; triplex and quad handle tall racking.
- Always verify capacity at your actual lift height and load center, not the nominal rating.
- Used masts need inspection and load testing before purchase, not just a visual check.
What Is a Forklift Mast and Why Is It Important?
The mast, sometimes called the upright, is the front-mounted structure that supports the carriage and forks and guides their vertical travel. Hydraulic cylinders push the rails upward, while chains, pulleys, and rollers work together to lift, lower, and tilt the load smoothly. OSHA's own breakdown of forklift parts describes the mast and carriage assembly as the system responsible for raising, lowering, and tilting the load.
Mast stages refer to the nested rail sections that telescope upward. More stages generally mean greater reach while keeping the collapsed mast relatively compact. That trade-off—reach versus collapsed height—is the core design choice.
Free Lift, Explained Simply
Free lift is the distance the forks can rise before the mast rails themselves start extending above the truck's frame. This matters most in low-clearance spaces: a forklift with strong free lift can raise a pallet inside a trailer or under a low doorway before the mast grows taller than the roofline.
The Four Height Measurements You'll See on Spec Sheets
| Measurement | What it tells you |
|---|---|
| Maximum fork height | Distance from the floor to the top of the forks at full extension |
| Overall lowered height | Height of the truck with the mast fully collapsed |
| Overall raised height | Height of the highest mast or backrest point when extended |
| Free-lift height | Fork height available before the mast itself starts extending |
OSHA's pre-operation guidance specifically calls for checking both the lowered height for travel clearance and the raised height for lift clearance — because a truck that clears a doorway at rest can still strike a sprinkler head once the mast goes up.
In daily operations, the mast determines:
- Doorway and dock clearance when the mast is collapsed
- Ability to work inside a trailer without hitting the roof
- Reach to your highest rack location
- How much forward visibility the operator retains
- Safe handling of your heaviest regular loads
Types of Forklift Masts and Their Lift Heights
Manufacturers generally build four mast configurations: simplex, duplex, triplex, and quad. You'll also see brand-specific labels like V, FV, FSV, TSU, or QFV on spec sheets: these describe free-lift and stage variations within those four categories, not separate mast types. Always check the actual data plate rather than relying on the abbreviation alone.
Simplex or Single-Stage Mast
A simplex mast has one rigid rail section with no telescoping stages. It typically offers limited lift height and little to no free lift.
Where it fits best:
- Outdoor yards and open facilities
- Ground-level pallet handling
- Low stacking where overhead clearance isn't a concern
- Applications prioritizing visibility over reach
Its appeal comes down to simplicity: fewer moving parts, excellent forward sightlines, and typically a lower price point. The trade-off is clear: it won't reach high racking or clear low overhead spaces well.
Duplex or Two-Stage Mast
The duplex, or two-stage mast, adds a second rail section and comes in two flavors: a standard version with limited free lift, and a full-free-lift (FV) version. That free-lift gap decides whether you can work under low ceilings without the mast rising first.
A standard duplex mast extends its outer rail almost immediately when lifting, which can be a problem in low-clearance spaces. A full-free-lift duplex raises the forks a good distance (often enough to clear a trailer roof) before the mast extends at all.
Typical applications:
- Double-stacking pallets in general warehouse racking
- Cross-docking operations
- Loading and unloading delivery vehicles
- General material handling where extreme height isn't required
4K Lift Co.'s own inventory reflects this split well. The company's lift-height filters (Under 10′, 11′–13′, 15′–16′, and Over 17′) let buyers shop by the height range their facility actually needs, rather than guessing from a model number.
Triplex or Three-Stage Mast
Add a third nested rail section and you get a triplex mast, the workhorse of most modern warehouses. It delivers substantially more reach than a duplex while keeping the collapsed height manageable for doorway and trailer access.
This is why triplex masts show up constantly in distribution centers and manufacturing facilities running elevated pallet racking. Several listings in 4K Lift Co.'s current inventory illustrate the pattern. A 2019 Toyota 8FGU25 features a 16-foot triple-stage mast rated at 5,000 pounds. A Komatsu FG25ST-12 offers the same 16-foot triplex configuration at matching capacity.
Triplex masts generally provide high free lift and greater maximum fork height than duplex units. The trade-off:
- More rails, cylinders, and chains can reduce forward visibility
- Added complexity means more components to maintain
- Capacity can drop at greater heights. Always check the chart
Quad or Four-Stage Mast
A quad mast nests four stages for very high lifting in specialized storage applications. It's built for high-density warehousing or unusually tall rack systems where a triplex simply doesn't reach far enough.
Before choosing quad, confirm:
- Your facility actually requires that reach (not just "might someday")
- Operators are trained for reduced visibility at extension
- The capacity plate holds up at your actual working height
- A lower-stage mast wouldn't handle the job just as well for less money
Four-stage mast height ranges vary enormously between manufacturers and models. There's no universal number. Pull capacity, free lift, and height figures from the manufacturer's spec sheet for that exact truck and configuration. Don't rely on averages.

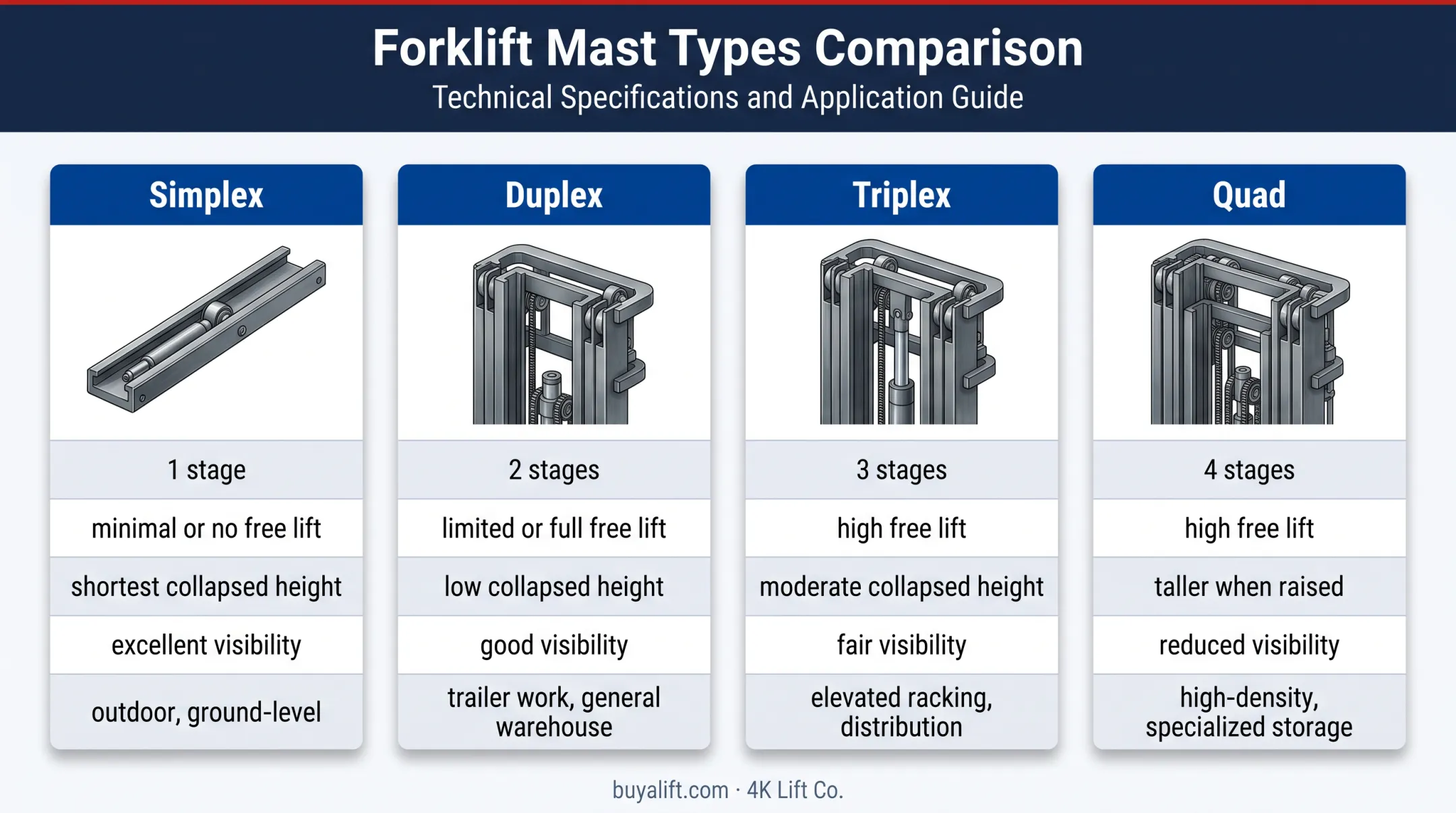

Quick comparison across all four types:
| Mast Type | Stages | Free Lift | Collapsed Height | Visibility | Best For |
|---|---|---|---|---|---|
| Simplex | 1 | Minimal/none | Shortest | Excellent | Outdoor, ground-level |
| Duplex | 2 | Limited or full | Low | Good | Trailer work, general warehouse |
| Triplex | 3 | High | Moderate | Fair | Elevated racking, distribution |
| Quad | 4 | High | Taller when raised | Reduced | High-density, specialized storage |
How to Choose the Right Forklift Mast
The right mast comes from your operating environment, your load, and your required reach — not from picking the tallest option on the lot.
Required Lift Height and Rack Layout
Measure the highest pallet storage position in your facility, then add clearance for safe placement and retrieval. A solid starting rule: measure to the highest rack beam and add at least six inches of working clearance before comparing that figure against a truck's maximum fork height.
Just as important: compare that required height against the mast's overall raised height, not just its fork height, so the extended assembly won't contact ceilings, sprinklers, lighting, or door headers.
Overhead and Access Restrictions
Measure every doorway, dock opening, trailer, container, and low-ceiling area the truck must enter. If you're regularly working inside trailers with low rooflines, a full-free-lift duplex or a shortened "trucker's mast" configuration often outperforms a standard mast that extends too soon.
Load Capacity and Stability

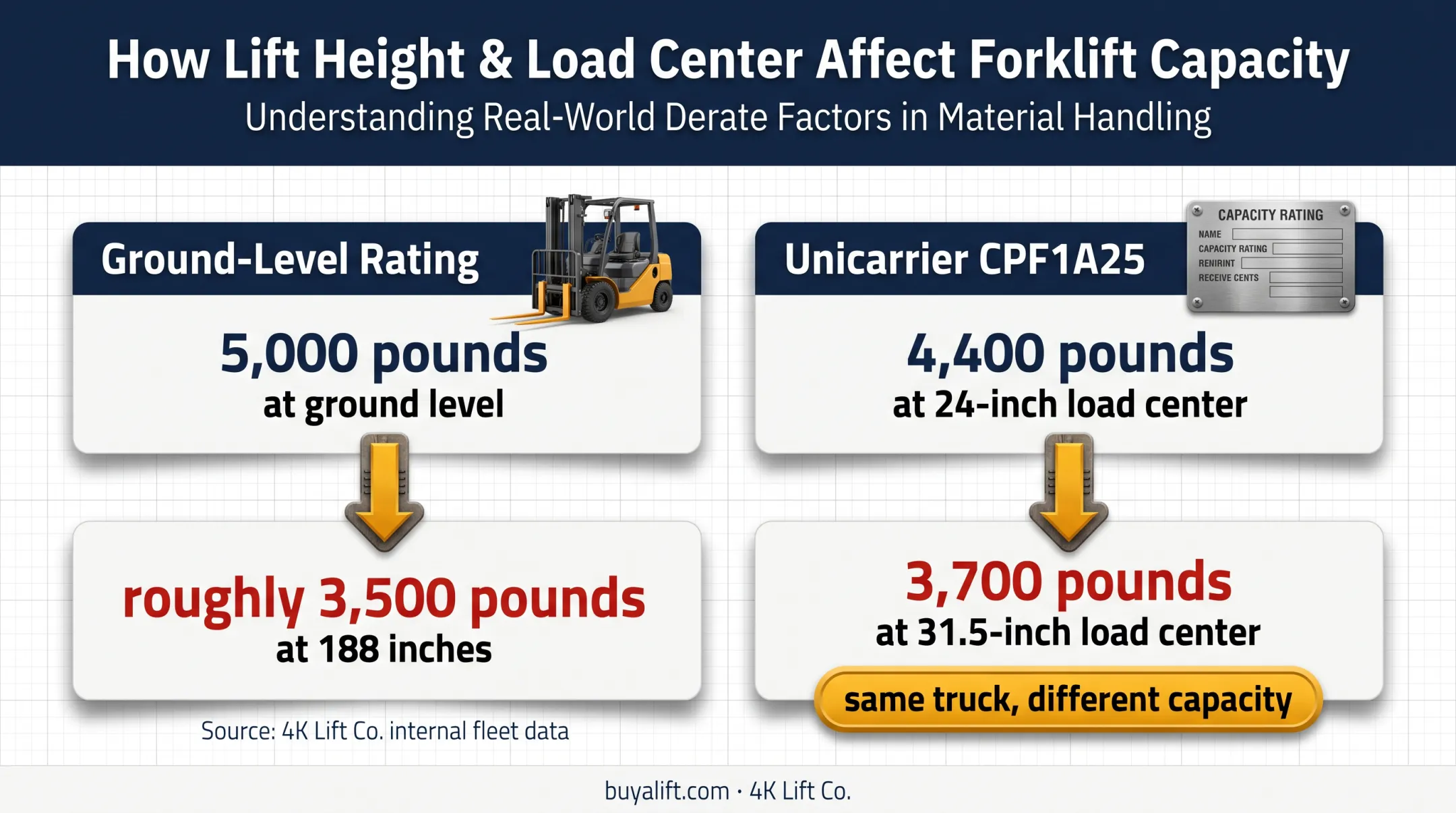

This is where buyers get tripped up. Rated capacity isn't fixed: it shifts with lift height and load center. Internal data from 4K Lift Co.'s own fleet shows how steep that drop can be. A truck rated for 5,000 pounds at ground level might be limited to roughly 3,500 pounds once it's lifting to 188 inches.
Before buying, verify:
- The capacity plate for the exact truck, mast, and attachment combination
- Load center. Most equipment under 10,000 pounds uses a 24-inch standard; a 36-inch load center can cut safe capacity by roughly a third
- Your heaviest regular load, not your average pallet weight
A Unicarrier CPF1A25 in 4K Lift Co.'s inventory illustrates this well: its plate shows 4,400 pounds at a 24-inch (600 mm) load center, dropping to 3,700 pounds at 31.5 inches (800 mm). Same truck, two very different numbers.
Visibility, Maneuverability, and Operator Requirements
Extra rails, cylinders, and chains on triplex and quad masts can obstruct forward sightlines. Balance that against aisle width, turning space, operator experience, and how often your team actually stacks at height. A simplex or duplex mast with clean sightlines may outperform a taller mast your operators rarely need to extend fully.
Budget, Condition, and Long-Term Support
A new forklift typically runs $30,000 to $50,000 or more. Used and reconditioned equipment closes that gap significantly, but only if the mast, hydraulics, and chains were properly inspected beforehand.
At 4K Lift Co., every unit goes through a full mechanical teardown, hydraulic and engine testing under load, and a safety check before pricing. Worn components get replaced rather than papered over, and reconditioned units include a 30-Day Exchange Option for buyers who want a safety net on their purchase.
What to Check Before Finalizing a Forklift Mast
Don't default to the tallest or most advanced mast available. Confirm its lift height, free lift, and capacity actually solve a documented need in your facility.
Skip the guesswork. Compare the data plate, mast specification, attachment details, and load center against real facility measurements rather than relying on nominal forklift capacity or informal estimates.

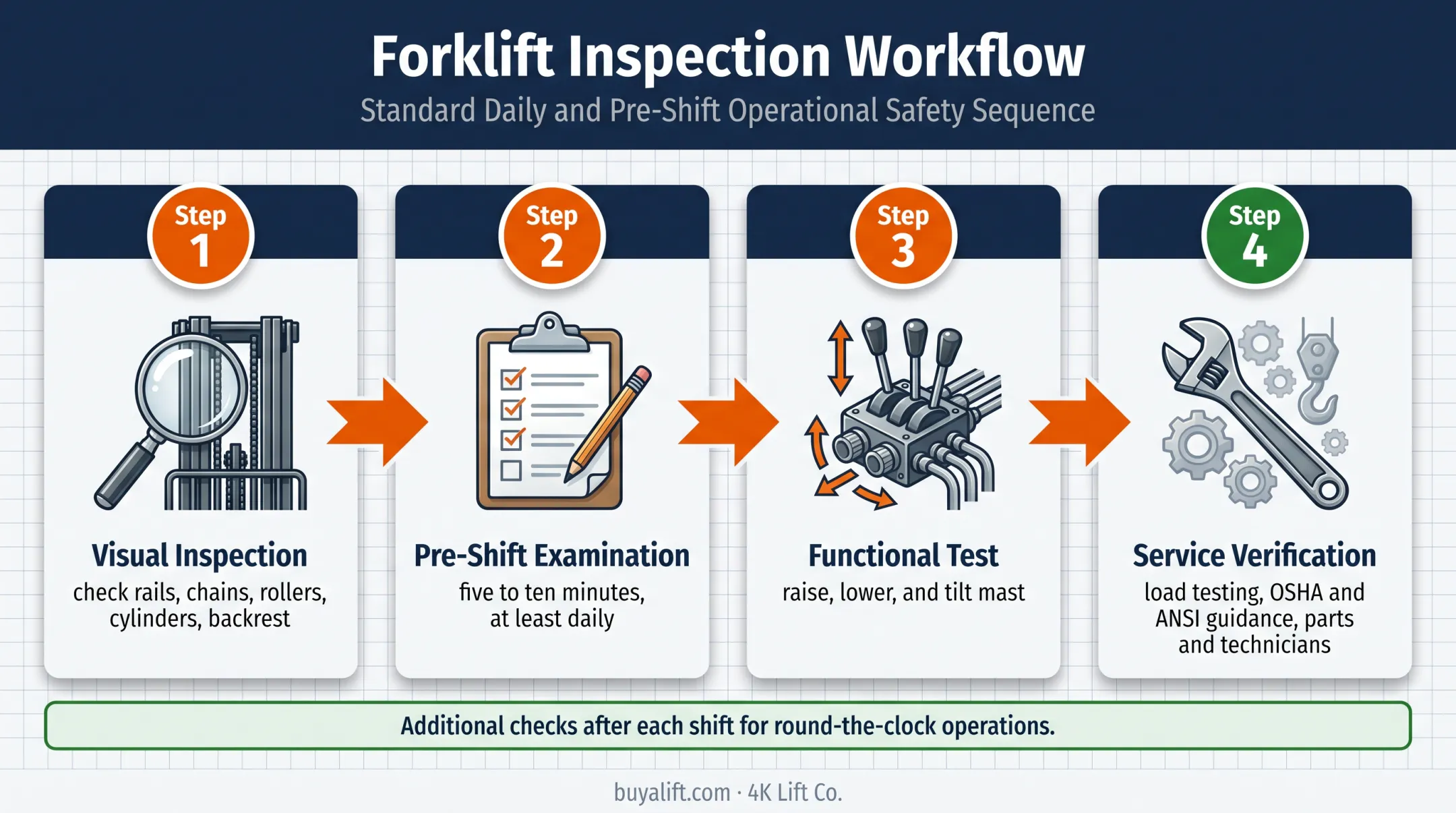

When inspecting a used mast, look for:
- Bent or cracked rails
- Worn or loose-pinned chains
- Damaged rollers or uneven carriage movement
- Hydraulic leaks from lift or tilt cylinders
- Cylinder wear or loose fasteners
- A cracked or bent load backrest
OSHA requires an examination before use, at least daily, with additional checks after each shift for round-the-clock operations. A proper pre-shift walkaround takes five to ten minutes.
Raise the forks fully, lower them, and tilt the mast forward and backward to confirm the cylinders hold position.
Beyond the visual inspection, confirm that:
- Documented functional and load testing matches the equipment's intended use
- Applicable OSHA and ANSI/ITSDF guidance for the mast and truck configuration has been reviewed
- Replacement parts, trained technicians, and service support exist for the specific make, model, and mast configuration
4K Lift Co.'s reconditioning standard covers this ground. Every unit that comes through its Fort Worth yard is inspected across the engine, hydraulic system, mast and lift chains, tires, and brakes before it's priced for sale.
Conclusion
A forklift mast controls far more than maximum reach. Free lift, collapsed clearance, raised height, visibility, and safe capacity all move together, and often not in the direction you'd expect.
Match the mast to the job:
- Simplex: Open-yard and ground-level work
- Duplex: Trailer loading and general warehouse tasks
- Triplex / quad: Tall racking and specialized storage, with trade-offs in visibility and complexity
Before you buy:
- Measure your worksite clearances and lift needs
- Verify published capacity against your actual loads
- Inspect mast condition thoroughly on any used unit
For used or reconditioned equipment, an experienced provider like 4K Lift Co. (inspected inventory and a 30-Day Exchange Option) lowers the risk of that purchase.
Frequently Asked Questions
What is the mast on a forklift?
The mast is the front-mounted vertical assembly that raises, lowers, and positions the carriage, forks, and load. It relies on rails, hydraulic cylinders, and chains working together to control vertical movement.
What are the different types of forklift masts?
The four common types are simplex, duplex, triplex, and quad, named for their number of nested stages. Simplex suits low, simple lifting; duplex handles trailer and general warehouse work; triplex and quad reach higher racking.
What are the key differences between a 2-stage and a 3-stage forklift mast?
A 2-stage (duplex) mast offers a lower collapsed height and better visibility but less maximum reach. A 3-stage (triplex) mast reaches higher with greater free lift, though exact specifications vary by model.
What is a quad mast forklift?
A quad mast uses four nested stages to achieve very high lift heights for specialized storage applications. The trade-offs include reduced visibility, added mechanical complexity, and the need for careful capacity verification at height.
How high can a quad mast forklift go?
Lift height is entirely model-specific and must be verified against the manufacturer's spec sheet for that exact truck and configuration. Capacity and stability also need separate confirmation at the stated height.
What is a container mast on a forklift?
A container mast is a low-clearance configuration built for working inside shipping containers or trailers, typically using full free lift or a shortened design. Always verify the lowered height, free-lift distance, and load capacity for the specific unit.
