Introduction
Searching for "Cat C5000 forklift specifications" usually means you're sizing up a used unit for a warehouse, distribution center, manufacturing floor, or outdoor yard. The problem: "C5000" isn't always one fixed machine.
Caterpillar's own factory documentation identifies a 2C5000 LPG cushion-tire model rated at 5,000 lb at a 24-inch load center. A separate electric model (the 3EPC5000) runs solid-pneumatic tires and a different frame entirely. Used listings often shorten both to just "C5000."
Before you compare capacity, lift height, powertrain, or price, you need to confirm which configuration you're actually looking at. This guide breaks down what the published specs say, what changes between variants, and how to verify the real numbers on a specific used unit before you buy.
Key Takeaways
- Confirm model, serial, mast, and tires before comparing any "Cat C5000" specs
- Rated capacity drops with attachments, non-standard masts, or elevated loads
- The data plate and maintenance history outrank any generic online spec sheet
- Used C5000 pricing varies by hours, condition, and configuration, not model name alone
Cat C5000 Forklift Specifications: What to Review
Confirm the Exact Model First
Caterpillar's factory brochure documents the 2C5000 as an LPG cushion-tire forklift. A used listing titled simply "C5000" often describes that same 2C5000 unit underneath.
Separately, Caterpillar's 2024 electric lineup lists a 3EPC5000, built with solid-pneumatic tires and a completely different weight and dimension profile.
Don't assume these are interchangeable. Treat "C5000" as a marketplace shorthand, not a single factory spec sheet.
Baseline Specifications to Collect
Once you've pinned down the actual model, build a short specification summary covering:
- Rated capacity and standard load center
- Maximum lift height and lowered mast height
- Overall width and turning radius
- Operating weight
- Fuel or power type
- Tire type and installed attachments

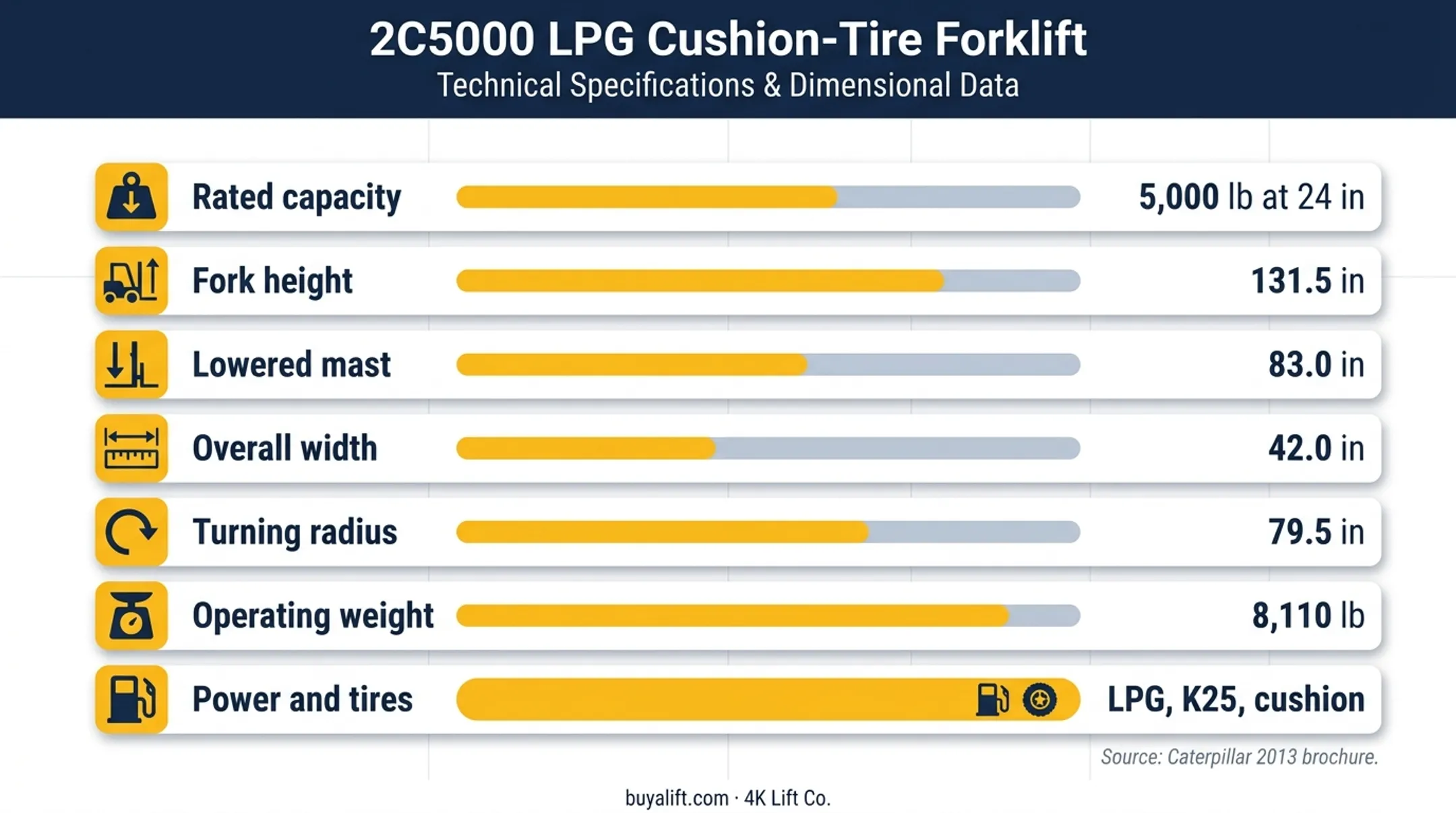

What Cat's Documentation Actually Shows
| Figure | 2C5000 (LPG, 2013 brochure) |
|---|---|
| Rated capacity / load center | 5,000 lb / 24 in |
| Standard mast fork height | 131.5 in |
| Lowered mast height | 83.0 in |
| Overall width | 42.0 in |
| Turning radius | 79.5 in |
| Operating weight | 8,110 lb |
| Power / tires | LPG, K25 engine; cushion tires |
That 131.5-inch fork height applies to the standard two-stage mast only. A used 2013 2C5000 listing shows a 188-inch triple mast instead, a huge difference in lift height, collapsed height, and residual capacity.
Reading the Data Plate
The capacity plate, usually mounted on the instrument panel or chassis, lists the model, serial number, rated capacity, load center, and maximum height for that specific truck.
OSHA's nameplate guidance notes that attachments generally require their own capacity adjustment on this plate — if a side-shifter or clamp is installed but the plate doesn't reflect it, that's a red flag, not a shortcut.
Published baseline specs tell you what a brand-new machine with a standard configuration could do. The data plate tells you what this specific forklift is rated for today. When the two disagree, trust the plate.
Capacity, Load Centre, and Lift Performance
Capacity, Load Center, and Lift Performance
Capacity Only Means Something With a Load Center
The 2C5000's 5,000 lb rating applies at a 24-inch load center: the standard distance OSHA uses for a centered load on an evenly distributed pallet. Quoting capacity without the load center is meaningless; a 5,000 lb-rated truck handling a load with its center of gravity pushed out to 36 inches won't safely lift 5,000 lb.
OSHA's load composition guidance confirms this directly: moving the load center farther from the forks reduces the truck's allowable capacity, and elevating the load changes stability further.
What Cuts Into Your Rated Capacity
Several factors shrink the number printed on the brochure:
- Longer loads that push the center of gravity forward
- Offset or unbalanced loads
- Attachments like side-shifters or clamps, which add dead weight and move the load center
- Elevated lifts: most manufacturers derate capacity above roughly 15 feet

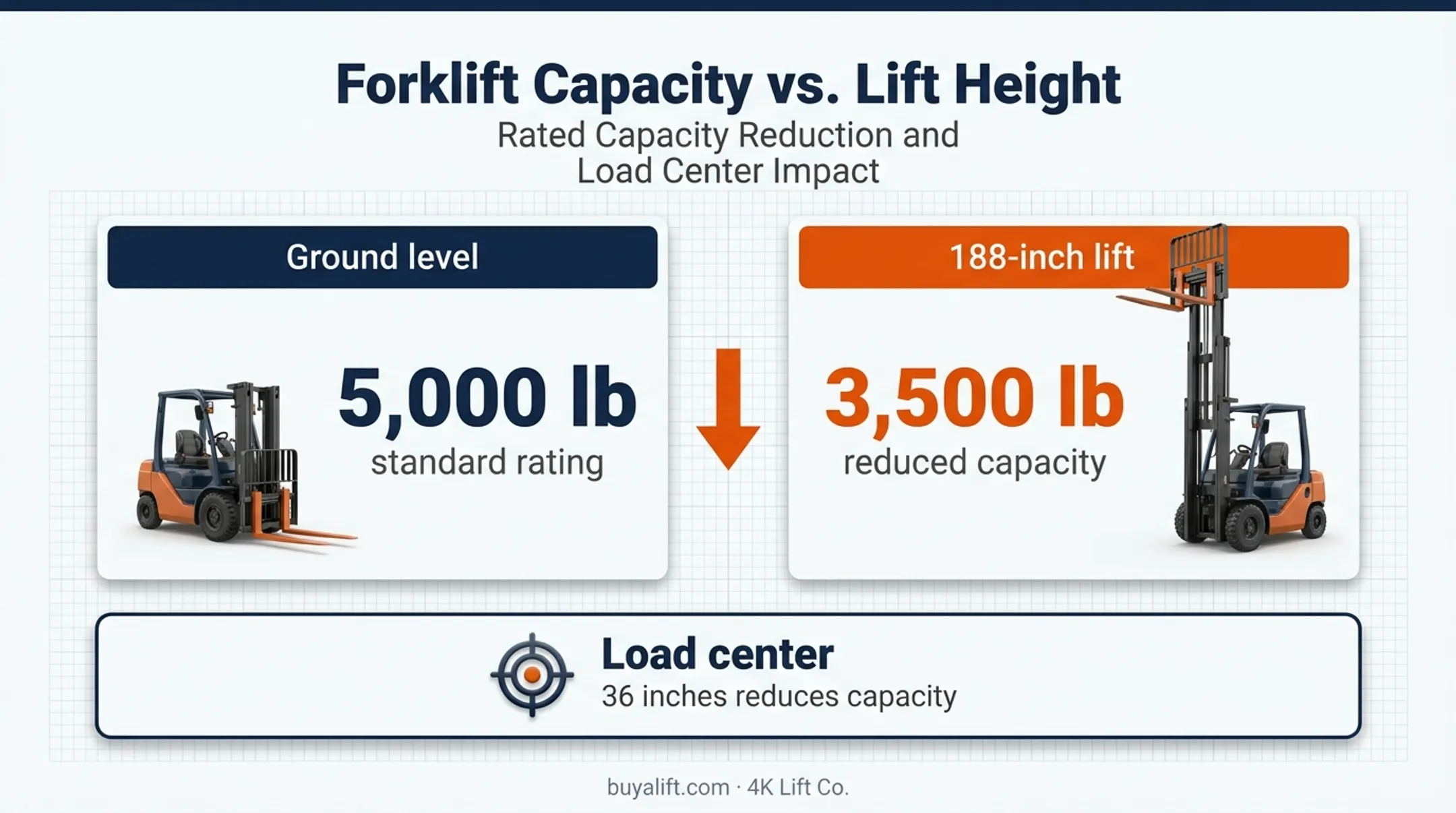

A truck rated for 5,000 lb at ground level might only handle 3,500 lb when lifting to 188 inches. That's not a defect; it's physics, and it's why the manufacturer's capacity chart (not the headline number) governs real operations.
Mast, Lift Height, and Overhead Clearance
The mast you're working with determines three separate figures:
- Maximum lift height — how high forks travel
- Free lift — how far forks rise before the mast itself extends
- Collapsed (lowered) height — critical for clearing doorways and trailers
A standard two-stage mast on the 2C5000 lowers to 83 inches; a triple mast changes both the collapsed height and the maximum reach. Measure your actual overhead clearance against the installed mast, not the brochure's base configuration.
Performance Beyond the Lift Chart
Travel speed, gradeability, acceleration, and turning radius also depend on exact configuration. Tire type, counterweight, and power source all play a role. These numbers matter most for:
- Pallet handling and racking in tight aisles
- Moving material across a production floor
- Loading trucks at a dock
- Outdoor yard work on uneven surfaces
Not every C5000 configuration suits all four. A cushion-tire LPG unit built for smooth warehouse floors isn't the same truck as a pneumatic-tire version meant for a gravel yard.
Powertrain, Dimensions, Tyres, and Operator Considerations
Fuel Type Changes Everything
The 2C5000 runs an LPG-fueled K25 engine with emissions equipment designed to meet applicable EPA and CARB requirements. Caterpillar's separate electric 5,000-lb-class model uses a battery and solid-pneumatic tires instead, with its own weight, footprint, and operating requirements.
Before comparing two "C5000" listings, confirm the power source first. An LPG unit running indoors raises exhaust and ventilation considerations that an electric truck doesn't.
Cushion vs. Pneumatic Tires
| Tire Type | Best Suited For | Trade-offs |
|---|---|---|
| Cushion | Smooth indoor floors, tighter turning radius | Lower ground clearance, less traction outdoors |
| Pneumatic | Gravel, asphalt, uneven ground | Larger footprint, wider turning radius |
Toyota's cushion-tire trucks mount solid rubber directly on the wheel for indoor floors; pneumatic versions use thicker, treaded tires built for rough surfaces. The same logic applies across brands, including Cat's lineup. Tire choice affects not just traction but overall width and stability.
Dimensions to Measure Before You Buy
Bring a tape measure, not assumptions. Compare these figures against your facility:
- Overall width vs. aisle width
- Lowered mast height vs. dock door and trailer clearance
- Overhead guard height vs. racking and ceiling obstructions
- Wheelbase and turning radius vs. available floor space
- Operating weight vs. floor load rating
Operator Considerations
Seat layout, visibility, overhead guard design, and noise levels vary by model year and configuration. Don't assume a used C5000 matches current documentation — verify against the actual unit, especially for older trucks where ergonomics and safety features may differ from newer brochures.
Matching a Cat C5000 to the Worksite
Different environments call for different configurations, even within the same model family.
- Warehouse and distribution: Indoor floors favor cushion tires and electric or LPG power, matched to your aisle widths and overhead clearance
- Manufacturing: Mixed indoor/outdoor routes may call for LPG or electric, depending on ventilation and floor conditions
- Construction and building-material yards: Outdoor, uneven ground favors pneumatic tires and diesel power over a cushion-tire indoor unit
- Agriculture and mixed yards: No factory-documented agricultural C5000 rating exists. Base the decision on actual load weight, surface, and attachment needs, not the base capacity figure alone
Used vs. New: Weighing the Trade-offs
Once the worksite setup is clear, condition and price drive the buy. A new forklift in this capacity class often runs $50,000 or more. A used, reconditioned C5000 can cut that cost substantially, but weigh it against:
- Expected utilization (hours per week)
- Maintenance needs and parts availability
- Operator training requirements
- Attachment compatibility (side-shifters, fork extensions, and clamps all need a recalculated capacity rating)
When daily loads, pallet dimensions, or attachments don't match the published baseline, a qualified forklift professional should confirm the adjusted rating before you commit.
What to Check Before Buying a Used Cat C5000
Inspection Checklist
Walk through these points on any used unit, regardless of what the listing calls it:
- Data plate and serial number — confirm they match the seller's description
- Hour meter — compare reported hours against visible wear
- Mast, chains, and forks — check for cracks, stretching, or misalignment
- Hydraulics — look for leaks and test lift, tilt, and auxiliary functions under load
- Tires, brakes, and steering — test function, not just appearance
- Engine or battery condition — verify against the documented powertrain A service history with a 7,500-hour meter but records stopping at 3,000 hours is a warning sign. If a truck averages about 2,000 hours a year, the paper trail should track with the meter reading. Large gaps mean missing or unreliable documentation, and that's reason enough to walk away.
Pricing: Compare Listings, Don't Rely on One Number

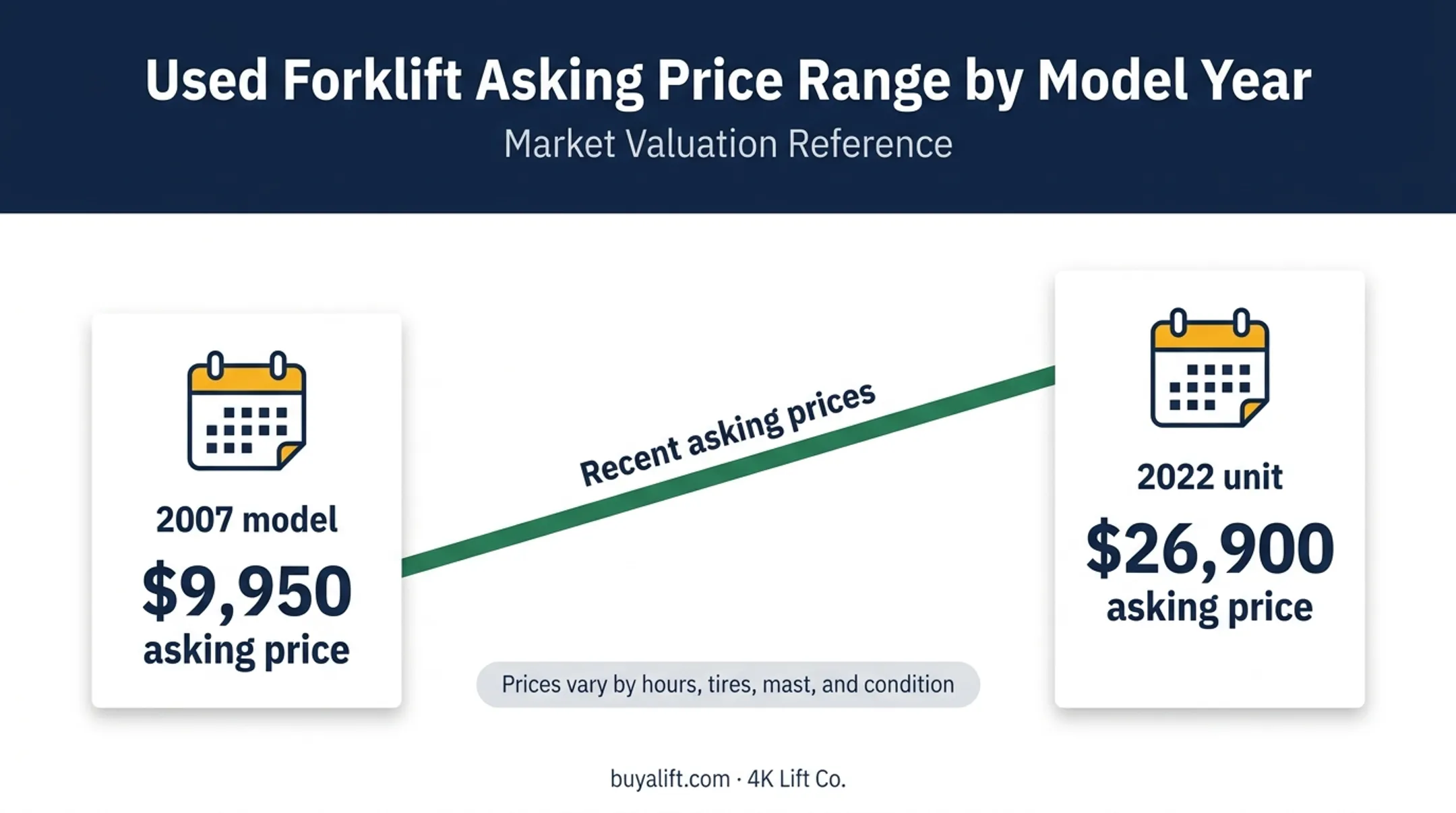

Recent C5000 asking prices have ranged from roughly $9,950 for a 2007 model to $26,900 for a 2022 unit, depending on hours, tires, mast configuration, and condition. A 2012 listing with nearly 4,700 hours asked more than a 2013 unit with just 1,020 hours, which shows year and hours alone don't set the price. Condition, documentation, and seller support matter just as much. 4K Lift Co. runs every unit through a full mechanical teardown, hydraulic and engine testing under load, and a safety check before it is priced, and includes maintenance records with the sale. If the Cat C5000 setup you need is not in stock, the team can match your load, floor, and attachment requirements to a reconditioned unit. Qualified buyers also get a 30-Day Exchange Option and financing options.
Conclusion: Use the Specification Sheet as the Starting Point
The right Cat C5000 for your operation depends on the exact configuration in front of you, not the name on the listing. Treat the brochure number as a starting point, then confirm every detail on the actual machine.
Before you buy:
- Pull the serial-specific specifications from the data plate
- Compare mast, tires, and attachments against your actual aisle, dock, and floor requirements
- Arrange a professional inspection rather than trusting hour meters alone
- Weigh total cost of ownership (purchase price, maintenance, and parts availability) against your real workload
A used forklift that matches your worksite beats one that only matches a spec sheet.
Frequently Asked Questions
What are the specifications of the Cat C5000 forklift?
Specifications vary by exact model and configuration. The C5000 name has covered both LPG cushion-tire and electric variants. Confirm capacity, load center, lift height, dimensions, powertrain, tires, and operating weight on the unit's data plate.
What is the load capacity of the Cat C5000 forklift?
Base documentation lists 5,000 lb at a 24-inch load center for the LPG 2C5000. Mast height, attachments, or load center can change that figure, so always confirm against the truck's capacity plate and chart.
How much does a Cat C5000 forklift cost?
Used pricing has ranged from roughly $9,950 to $26,900 depending on year, hours, condition, configuration, and location. Weigh current listings and a hands-on inspection over any single average price.
