Those are fair questions. Specifications for this forklift class vary by production year, mast configuration, and attachment setup, so a model name alone won't tell you what a specific truck can do. The manufacturer's own brochure rates the GC40K at 8,000 lb at a 24-inch load center, according to Cat Lift Trucks' CECT0400 specification sheet — but that number shifts once you factor in mast height, tires, and attachments.
This guide covers verified specs, where this forklift fits, how to inspect a used unit, and what ownership actually costs.
Key Takeaways
- Inspect the data plate, serial number, mast, tires, and fuel system—don't rely on the GC40K name alone
- Confirm rated capacity on the plate; it changes with load center, lift height, and attachments
- Reconditioned units run about $16,000 vs. $50,000+ new; maintenance history beats sticker price
- Match tire type and chassis to your surface; not every GC40K handles outdoor or rough terrain
What Is the CAT GC40K Forklift?
The GC40K is an internal-combustion, cushion-tire forklift built by Cat Lift Trucks. It sits in OSHA Class IV—solid/cushion-tire industrial trucks—and belongs to a mid-size lineup spanning the GC35K through GC70K, including the short-turn-radius GC40K STR.
Most documented units run LP gas with a 4.3-liter V6 rated at 104.6 hp and a powershift transmission. Always verify fuel type and engine details against the specific unit's data plate — listings online sometimes use shorthand like "LP/Gas" that doesn't resolve the exact configuration.
Typical Operating Environment
This forklift class shows up most often in:
- Warehouse and distribution center pallet handling
- Manufacturing floors moving raw materials and finished goods
- Trailer loading and unloading at dock areas
- Lumber and building-material yards (on paved or compacted surfaces)
Nominal Capacity vs. Real-World Capacity
The 8,000-lb rating assumes a standard 24-inch load center, standard mast, and no attachments. Add a side-shifter, extend the forks, or raise the load higher, and that number drops.
Manufacturers typically apply capacity derating for lifts above 15 feet, so an 8,000-lb truck can carry noticeably less at full height than it can near ground level.
Why Model Year Matters
Engine emissions equipment, hydraulic controls, and safety features have evolved across production years. An older GC40K may lack features found on newer units, and parts availability can differ by serial-number range. Pull the Caterpillar documentation specific to your unit's year before assuming anything carries over.
Cushion Tires vs. Pneumatic/Rough-Terrain Models
The GC40K's cushion tires are solid rubber mounted directly to the wheel — built for smooth floors, not gravel lots. A tire-selection guide from Gregory Poole Lift Systems notes that cushion tires work on smooth outdoor pavement too, but pneumatic or rough-terrain models with deeper tread and more ground clearance are the better call for uneven or unpaved surfaces.

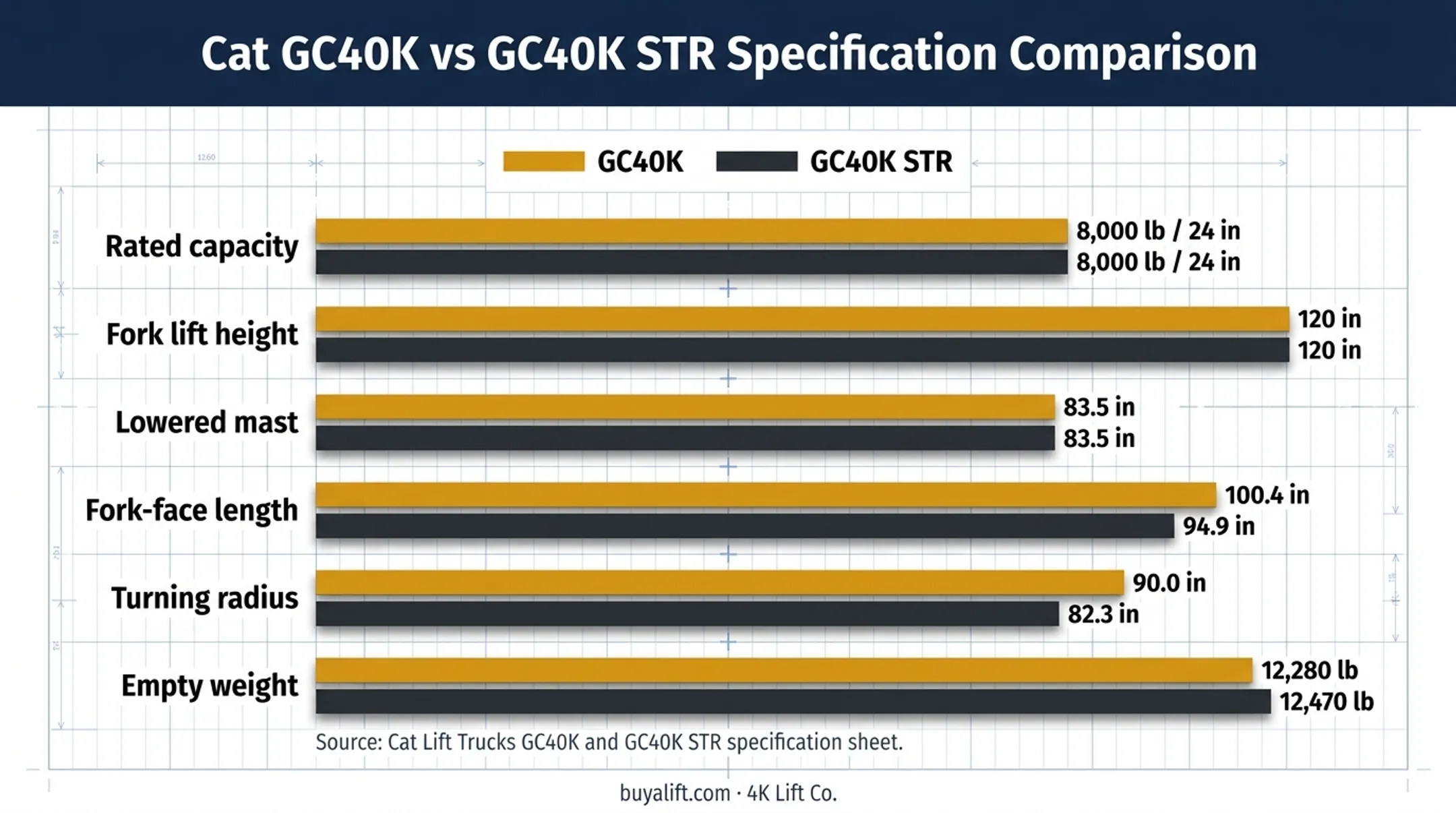

GC40K Specifications and Configuration Variables
Below are figures from Cat Lift Trucks' published GC40K and GC40K STR specification sheet. Treat these as a reference point, not a guarantee. Confirm everything against the actual data plate.
| Specification | GC40K | GC40K STR |
|---|---|---|
| Rated capacity / load center | 8,000 lb / 24 in | 8,000 lb / 24 in |
| Standard fork lift height | 120 in | 120 in |
| Lowered mast height | 83.5 in | 83.5 in |
| Length to fork face | 100.4 in | 94.9 in |
| Overall width | 46.5 in | 46.5 in |
| Empty operating weight | 12,280 lb | 12,470 lb |
| Turning radius | 90.0 in | 82.3 in |
| Travel speed (loaded/empty) | 11.8 / 12.1 mph | 11.8 / 12.1 mph |
| Engine | 4.3L V6, 104.6 hp | 4.3L V6, 104.6 hp |
| Fuel / transmission | LP gas / powershift | LP gas / powershift |
Power, Fuel, and Drivetrain
The documented configuration runs LP gas through a 12-volt electrical system and powershift transmission. If a listing describes a different fuel type or electric drive, that's a separate configuration worth confirming independently — it's not part of the brochure data above.
Attachments, Masts, and Capacity Plates
- Attachments reduce capacity. A side-shifter, fork extensions, or a clamp attachment adds weight forward of the mast and shifts the load center, cutting usable capacity.
- Mast type changes the math. Simplex, duplex, and triplex masts each carry different capacity figures at height. A separate metric sheet lists 4,000 kg at a 500 mm load center for the base mast, with lower ratings higher up.
- Any capacity change must show up on the plate. If an attachment was added after manufacture, OSHA requires the capacity plate to reflect that change.
Before relying on any number in this table, pull the operator manual and check the data plate on the actual forklift in front of you.
Where the GC40K Fits Best
The GC40K suits indoor and smooth-surface work. Typical jobs include:
- Pallet movement
- Loading dock support
- Production-line staging
- Warehouse racking
It's a common fit for small-to-mid warehouses, manufacturers, fabrication shops, and building-material suppliers running used equipment on concrete or well-maintained asphalt.
When Another Model Makes More Sense
Consider alternatives if your operation involves:
- Uneven terrain, soft ground, or unpaved yards
- Long outdoor travel distances
- Unusually high lift heights beyond standard mast capability
- Heavy attachments that eat into rated capacity
- Narrow aisles requiring a reach truck
- Intensive multi-shift use where a different fuel type suits duty cycle better
Surface and Application Checklist
| Surface | Fit for cushion-tire GC40K |
|---|---|
| Indoor warehouse floor | Good fit |
| Paved or compacted outdoor yard | Conditional — assess surface condition |
| Gravel, soil, or broken pavement | Not recommended; consider pneumatic tires |
| Ramps and dock areas | Follow OSHA grade and speed guidance |
| Wet or contaminated floors | Requires separate traction assessment |
Whatever the surface, operators need to follow the capacity plate, manufacturer guidance, and applicable OSHA requirements for training, inspection, and load handling.

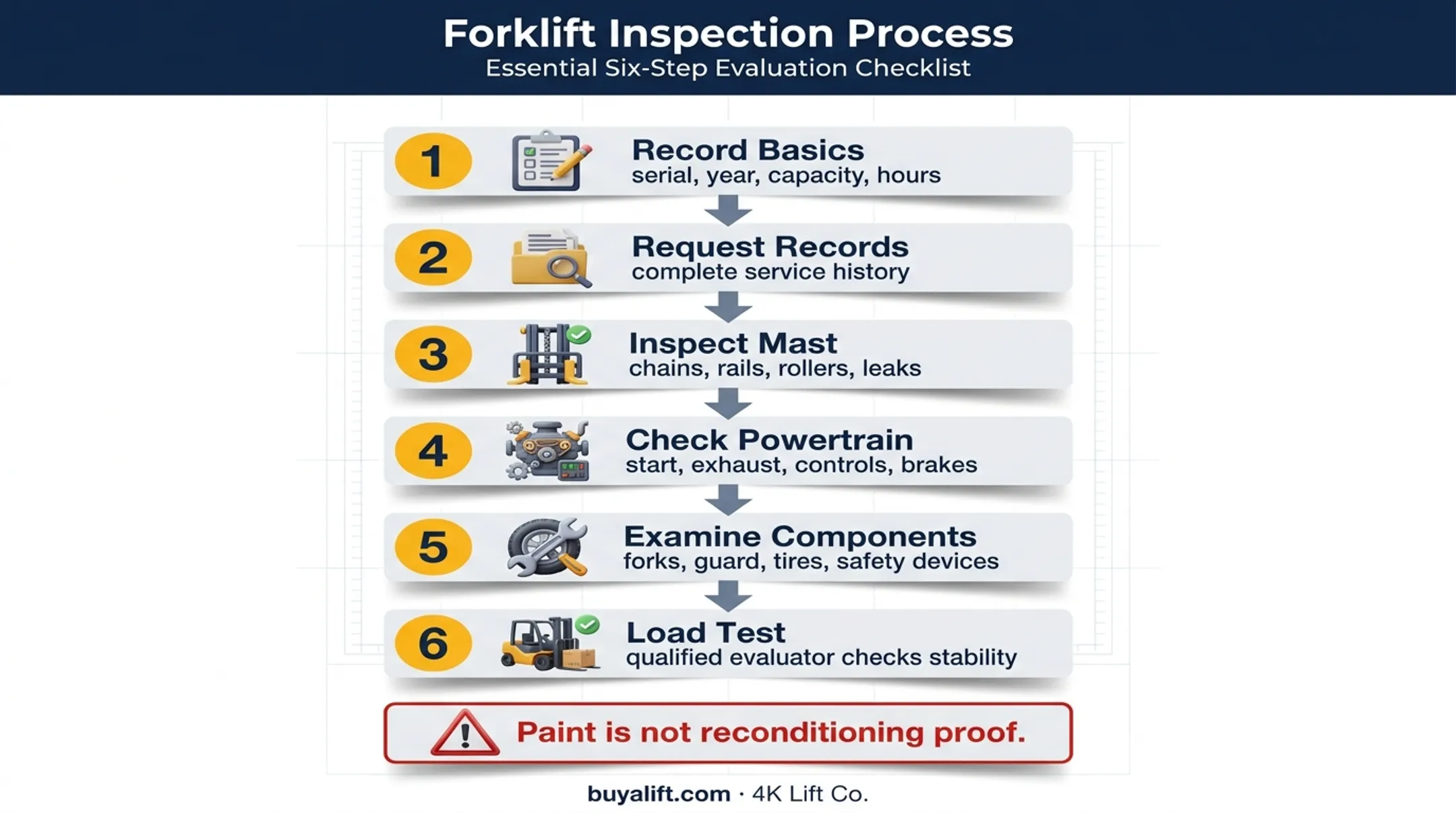

How to Evaluate a Used GC40K Before Buying
Start with paperwork, not the engine bay.
- Record the basics — serial number, model year, rated capacity, mast type, lift height, attachment, fuel system, hour meter, and ownership history.
- Request complete service records — gaps are a red flag; incomplete logs often hide thousands of hours of operator abuse or deferred maintenance.
- Inspect the mast and hydraulics — chain wear, bent rails, damaged rollers, leaking cylinders, hose cracking, uneven lift speed, or drift.
- Check the powertrain and controls — cold start behavior, exhaust condition, transmission engagement in forward/reverse, braking, steering response, and warning lights.
- Examine physical components — forks, carriage, overhead guard, seat and restraint, lights, horn, backup alarm, tires, counterweight, and frame welds.
- Run a controlled load test — have a qualified evaluator check lift, tilt, travel, and stability. A fresh coat of paint is not proof of mechanical reconditioning.
Calculating Real Cost, Not Sticker Price
Add up the full cost of ownership before you compare sticker prices:
- Purchase price and transport
- Tires, fluids, and needed repairs
- Attachments and inspection fees
- Expected downtime
A cheaper unit with worn chains and bald tires can cost more over a year than a slightly pricier, better-maintained one.
Have an experienced forklift technician inspect the unit before you buy, and confirm parts and service support exist for that specific serial-number range before committing.
Buying From a Used Forklift Dealer
Before you sign anything, ask the dealer:
- What was inspected or rebuilt, specifically?
- Was the forklift load-tested, and at what capacity?
- Which components were replaced?
- Are complete service records available?
- What does the exchange, warranty, or return policy cover?

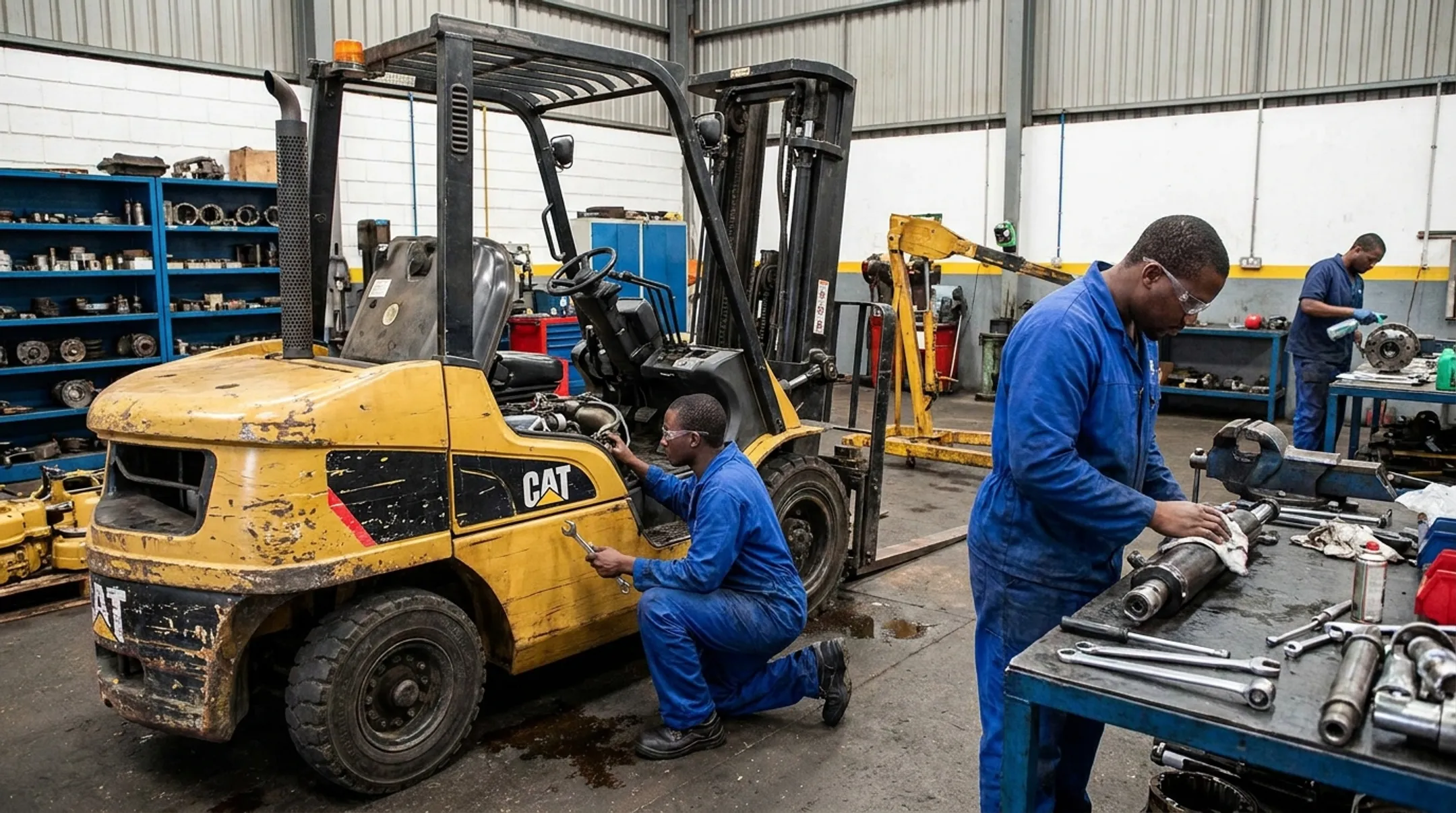

At 4K Lift Co., every used Caterpillar forklift gets torn down, inspected, and load-tested near its rated capacity before it's priced. When needed, major components are rebuilt in-house:
- Engines, transmissions, steering axles, and hydraulic cylinders
- Forks, mast, overhead guard, tires, and safety devices (checked before a unit ships)
We can't promise a GC40K is sitting on the lot right now (inventory shifts daily), but if one's available, it goes through that same process.
4K Lift Co. has been sourcing, reconditioning, and selling forklifts since 1989, long enough to have handled most major brands and configurations, including CAT. That experience helps match specs to your actual job, not just a listing sheet.
Comparing Alternatives When the GC40K Isn't Available
If the exact model isn't in stock, compare similar used forklifts on:
- Rated capacity and load center
- Tire type (cushion vs. pneumatic)
- Mast height and lowered height
- Fuel type and availability
- Parts and service access for that serial range
- Total cost including any needed repairs
Call 4K Lift Co. at 888-365-5438 to ask about current inventory, compatible alternatives, and inspection details. Delivery is available across Dallas-Fort Worth, Houston, Oklahoma City, and San Antonio, and financing is open to qualified buyers.
Operating, Maintenance, and Ownership Considerations
OSHA requires a safety examination before service (at least daily, or after each shift for round-the-clock operations) per 29 CFR 1910.178(q)(7). A defective truck gets pulled from service until it's fixed, full stop.
What to Check Daily
A five-to-ten-minute walkaround should cover:
- Engine oil, hydraulic fluid, and coolant levels
- Visible leaks in hoses and mast chains
- Fork condition and tire wear
- LP-gas tank, hose, and connections
- Data plate legibility and seat belt condition
- Horn, brakes, steering, and hoist/tilt controls
No GC40K-specific service interval from Caterpillar is published in general model literature. Pull the operator manual for the exact model year rather than relying on a generic checklist.
What Drives Long-Term Cost
Operating hours, duty cycle, load weight, surface conditions, and operator habits all affect tire wear, component life, and downtime. Keep inspection forms, repair invoices, and parts records. Those files support safe fleet management now and resale value later.
For parts and major repairs, confirm a shop with multi-brand experience is available in your area. The best ownership decision comes down to cost per operating hour, not just the lowest purchase price.
Usage thresholds often guide the call:
- Annual use above roughly 1,500 hours tends to favor buying
- Planned use under two years often favors renting
Frequently Asked Questions
What is a CAT GC40K forklift?
It's a Class IV, cushion-tire, internal-combustion forklift built by Cat Lift Trucks for warehouse and manufacturing pallet handling. Always verify the specific model year and configuration before relying on general specs.
How much can a GC40K forklift lift?
The documented base rating is 8,000 lb at a 24-inch load center, but actual capacity depends on mast height, attachments, and the specific unit's data plate. Confirm the number on the capacity plate before loading anything.
What type of fuel does a GC40K use?
The documented configuration runs on LP gas with a 12-volt electrical system. Check the fuel system and data plate on your specific unit, since listings sometimes use less precise terminology.
Is the CAT GC40K forklift suitable for outdoor use?
It works well on smooth, maintained pavement, but cushion tires aren't built for gravel, uneven yards, or rough terrain. Match tire type and ground clearance to your actual surface before assuming outdoor suitability.
What should I check before buying a used GC40K?
Verify the data plate, inspect the mast, hydraulics, forks, tires, engine, brakes, and safety equipment, and review complete service records. Have a qualified forklift technician inspect it before you buy.
Where can I find parts or service for a GC40K forklift?
Caterpillar dealers or qualified multi-brand forklift service providers can supply parts. Have the serial number ready to confirm compatibility. 4K Lift Co. works with multiple forklift brands and helps buyers in Texas and Oklahoma source used and reconditioned equipment.
