Introduction
Walk onto almost any warehouse floor and you'll hear the same shorthand: "that's a 5,000-pound forklift." It's convenient. It's also incomplete, and sometimes dangerous.
A forklift's capacity rating isn't a flat number that applies to every load, every time. It's a conditional limit tied to a specific load center, lift height, mast setup, and attachment configuration.
Federal regulation backs this up directly: OSHA requires that only loads within a truck's rated capacity be handled, and that rating is defined by the specific conditions on the data plate, not a general assumption about the machine (29 CFR 1910.178(o)(2)).
This article breaks down how capacity ratings actually work, where to find them, how to read a capacity plate correctly, and what reduces a forklift's usable capacity before you ever lift a thing.
Key Takeaways
- Rated capacity applies only under the exact conditions listed on the data plate, not as a general number.
- Load center, lift height, attachments, load distribution, and machine condition can all lower actual usable capacity.
- The data plate is the only reliable source for a specific truck's permitted capacity.
- Never estimate capacity from a forklift's size, model name, or a general industry range.
- Off-center, oversized, or damaged loads need extra evaluation before you lift them.
What a Forklift Capacity Rating Represents
A forklift capacity rating is the maximum load a specific truck can lift under stated conditions:
- A defined load center
- A defined lift height
- A standard mast
- No specialized attachments
Change any one of those variables and the number on the plate may no longer apply.
Most warehouse forklifts rated under 10,000 pounds use a 24-inch load center as their baseline, representing the center of gravity of an evenly loaded 48-inch pallet. That's why a 5,000-pound rating doesn't mean the truck can lift every object weighing 5,000 pounds. It means it can lift 5,000 pounds positioned 24 inches from the fork face.
The Forklift as a Counterbalanced System
Think of the front axle as a fulcrum. The counterweight at the rear balances the load on the forks, keeping the combined center of gravity inside the truck's stability area. Push that center of gravity too far forward, whether by adding weight or moving it farther out on the forks, and the rear wheels start to lose contact with the ground.

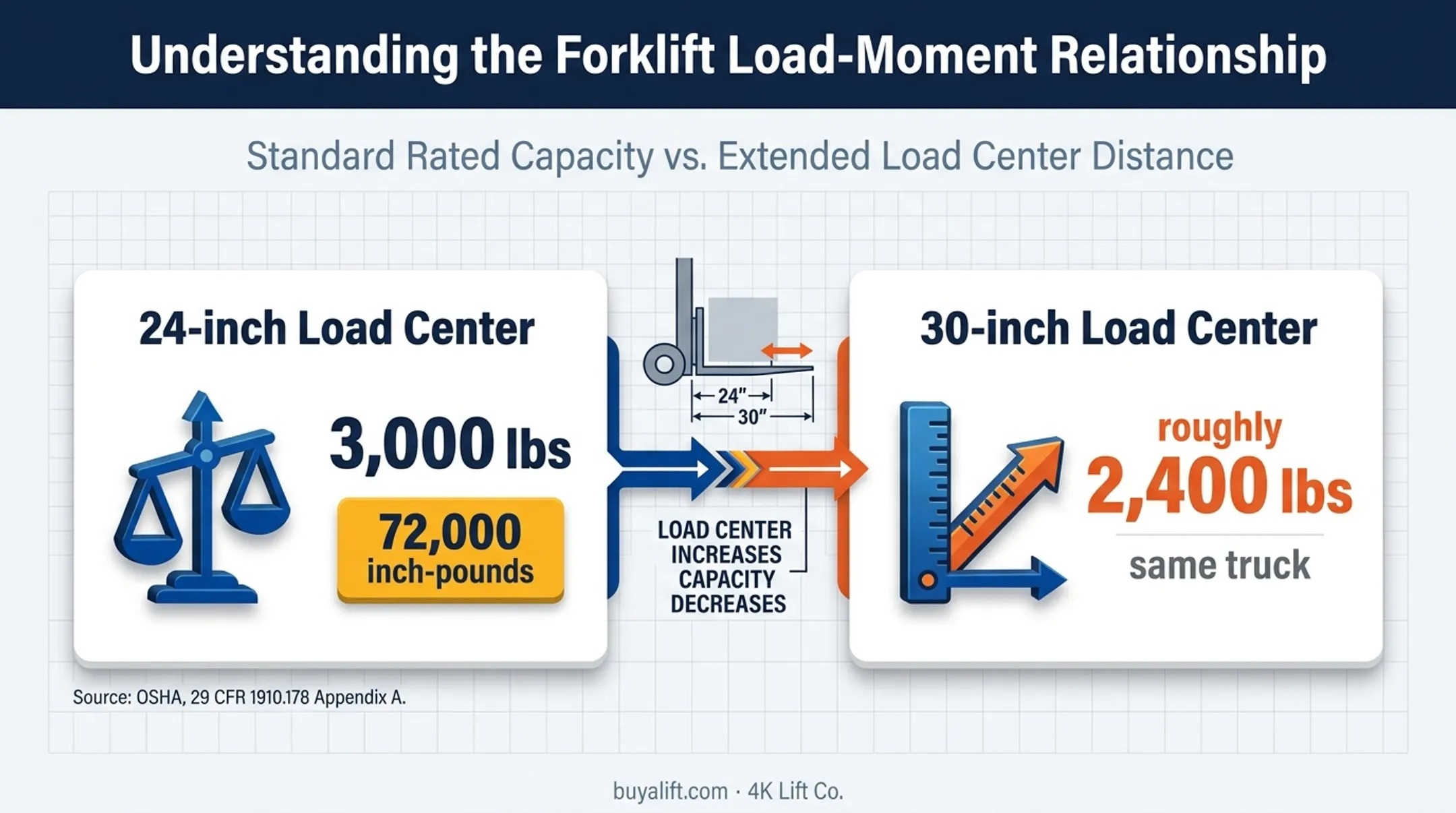

This relationship between load weight and distance is called load moment. OSHA's nonmandatory stability appendix illustrates it well: a truck rated for 3,000 lbs at a 24-inch load center has a rated load moment of 72,000 inch-pounds. Move that same load out to a 30-inch load center, and the truck's maximum safe load drops to roughly 2,400 lbs (OSHA, 29 CFR 1910.178 Appendix A).
The math isn't optional. It's physics, and it's why "rated capacity" and "safe capacity for this load" are often two different numbers.
A general capacity range you see in a spec brochure is useful for shopping. It is not a substitute for the plate on the specific machine you're about to operate.
Forklift Capacity Range and the Factors That Change It
Forklifts span an enormous range, from compact 3,000-pound electric warehouse trucks to heavy-duty pneumatic-tire units rated at 30,000 pounds or more. Here's a rough orientation by class, not a safe operating spec for any individual truck:
| Forklift Type | Typical Capacity Range | Common Load Center |
|---|---|---|
| Class I electric, 3-wheel | 3,000–4,000 lbs | 24 in |
| Class IV/V IC cushion/pneumatic | 3,000–6,500 lbs | 24 in |
| Heavy-duty pneumatic (IC) | 8,000–33,000+ lbs | 24–48 in |
Several real-world factors push usable capacity below these nominal numbers.
Nominal Capacity Versus Usable Capacity
The capacity printed in a brochure assumes a brand-new machine, standard forks, a standard mast, and zero attachments. Add a longer load center, a taller lift height, or any accessory, and the usable number drops. The data plate on the individual unit, not the catalog page, reflects the truck's actual configuration.
Load Center and Load Distribution
Load center is the horizontal distance from the fork face to the load's center of gravity. A 48-by-48-inch pallet, evenly loaded, sits at 24 inches. A 72-inch crate loaded unevenly can push that center out to 36 inches or more.
Weight alone doesn't set safe capacity—load shape and balance do:
- A uniform pallet of boxes behaves predictably.
- A concentrated steel coil shifts weight to one point.
- A long pipe or conduit extends the effective load center well past 24 inches.
- A liquid-filled container can shift mid-lift, changing the center of gravity in motion.
A forklift rated for 6,000 lbs at a 24-inch load center may not safely lift a 5,500-pound crate if that crate's actual load center sits at 36 inches.
Lift Height and Mast Configuration
Raising a load changes the combined center of gravity, and most manufacturers apply a derating schedule for lifts above 15 feet. A truck rated for 5,000 lbs at ground level might only be safe to 3,500 lbs at 188 inches. Maximum fork height and the height at which a particular load can be safely handled are not the same thing, so always check the capacity table for the exact mast and height combination.
Attachments, Tires, Batteries, and Modifications
Side-shifters, fork positioners, and clamps add dead weight to the carriage and often push the load center forward. A side-shifter alone can cut net capacity by adding front-end weight while also affecting lateral stability.
Changes to forks, tires, batteries, or masts can alter the original rating too, which is why the truck's data plate must reflect the installed configuration, not the factory spec.
Machine Condition and Operating Environment
Worn forks, damaged chains, hydraulic leaks, underinflated tires, uneven floors, and slopes all affect stability, even when the rated capacity hasn't changed on paper.
For used equipment, inspection history matters: undocumented abuse or neglected maintenance can hide risk a plate number won't show. That is why 4K Lift Co. runs full mechanical teardown and load testing before pricing any used unit—the sticker rating alone is not enough.
How Capacity Is Specified and Verified
The data plate is both a design specification and an operational checkpoint. Before lifting anything outside a routine warehouse pallet, operators should consult it directly.
Finding the Capacity Rating
The data plate, sometimes called a nameplate or data tag, is typically mounted on the instrument panel or chassis where the operator can see it. Per OSHA nameplate guidance, it generally lists:
- Model and serial number
- Mast type and attachment details
- Load centers and lift heights
- Fuel or battery requirements
- Capacity values
If the plate is missing, damaged, altered, or illegible, that's a stop-and-verify situation. Don't guess. Get manufacturer or qualified service guidance instead.
Reading the Capacity Table
Match your intended lift height and actual load center to the corresponding row or column.

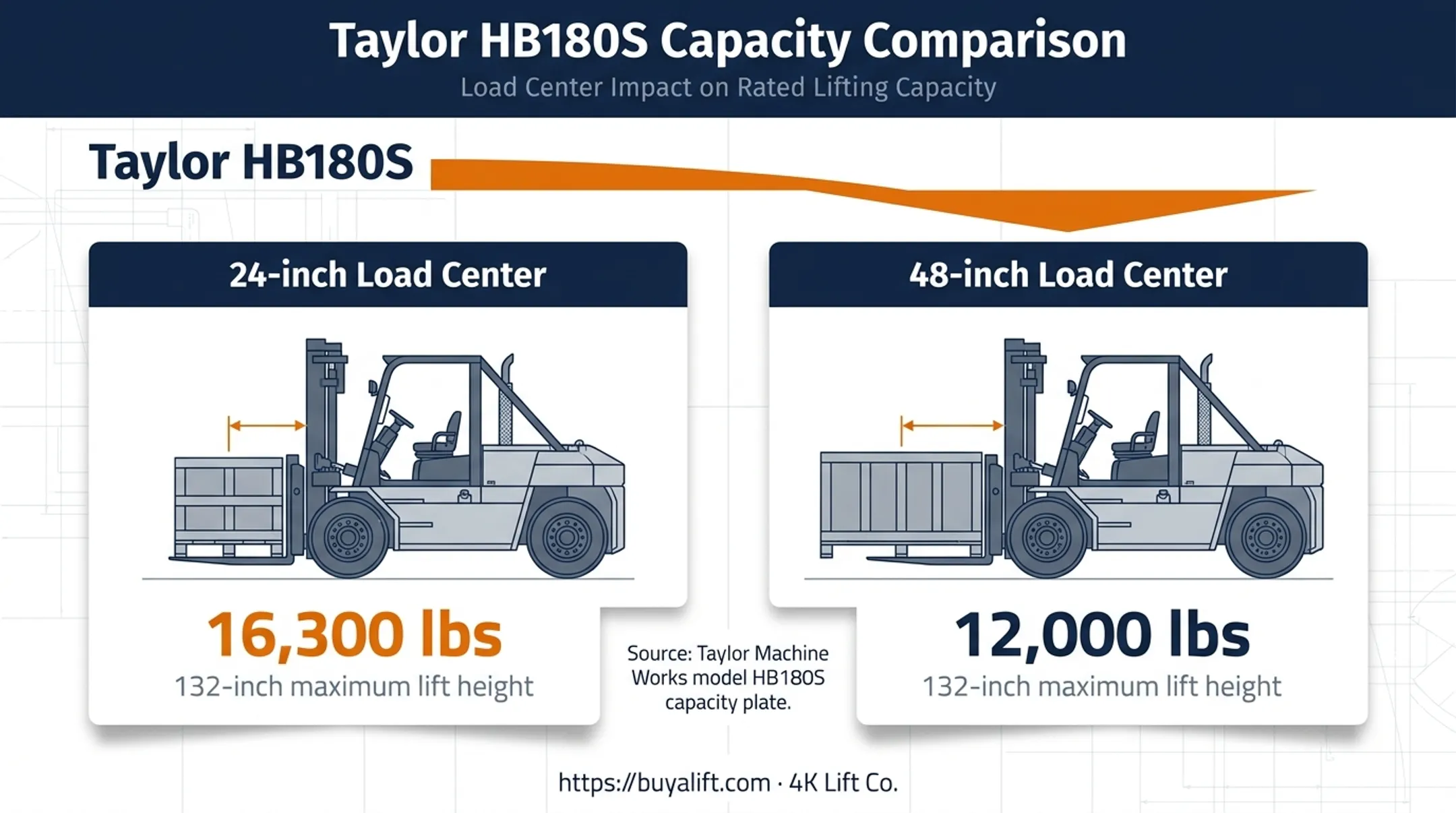

A real-world example: a Taylor Machine Works model HB180S plate lists 16,300 lbs at a 24-inch load center, but only 12,000 lbs at a 48-inch load center, with a 132-inch maximum lift height. Same truck, two different safe weights—depending entirely on where the load's center of gravity sits.
When your load falls between published values, use the more conservative figure.
Calculating or Estimating Actual Capacity
Load-moment math follows a simple relationship: rated capacity × rated load center = maximum load moment. Divide that load moment by your actual load center to estimate a rough safe weight. This is useful for sanity-checking a lift in the field, but it is not a replacement for the manufacturer's approved rating or a qualified engineer's sign-off on unusual loads.
Verification Before a Lift
Run through this short checklist before any non-routine lift:
- Confirm the load's total weight using a manifest or scale, not a guess.
- Measure or estimate the true center of gravity.
- Confirm the intended lift height against the capacity table.
- Account for attachments and packaging weight.
- Inspect the load and the forks for damage.
- Verify the data plate matches the truck's current configuration.
If the load is off-center, unstable, unusually long, suspended, or damaged, or the conditions fall outside what's listed on the plate, stop and consult a supervisor or qualified technician.
Those same plate limits also matter when you choose a truck. Matching mast, attachments, and duty cycle up front prevents capacity shortfalls after the unit is on the floor. 4K Lift Co. helps buyers compare configuration, condition, and application requirements before purchase.
What Happens Outside the Recommended Capacity

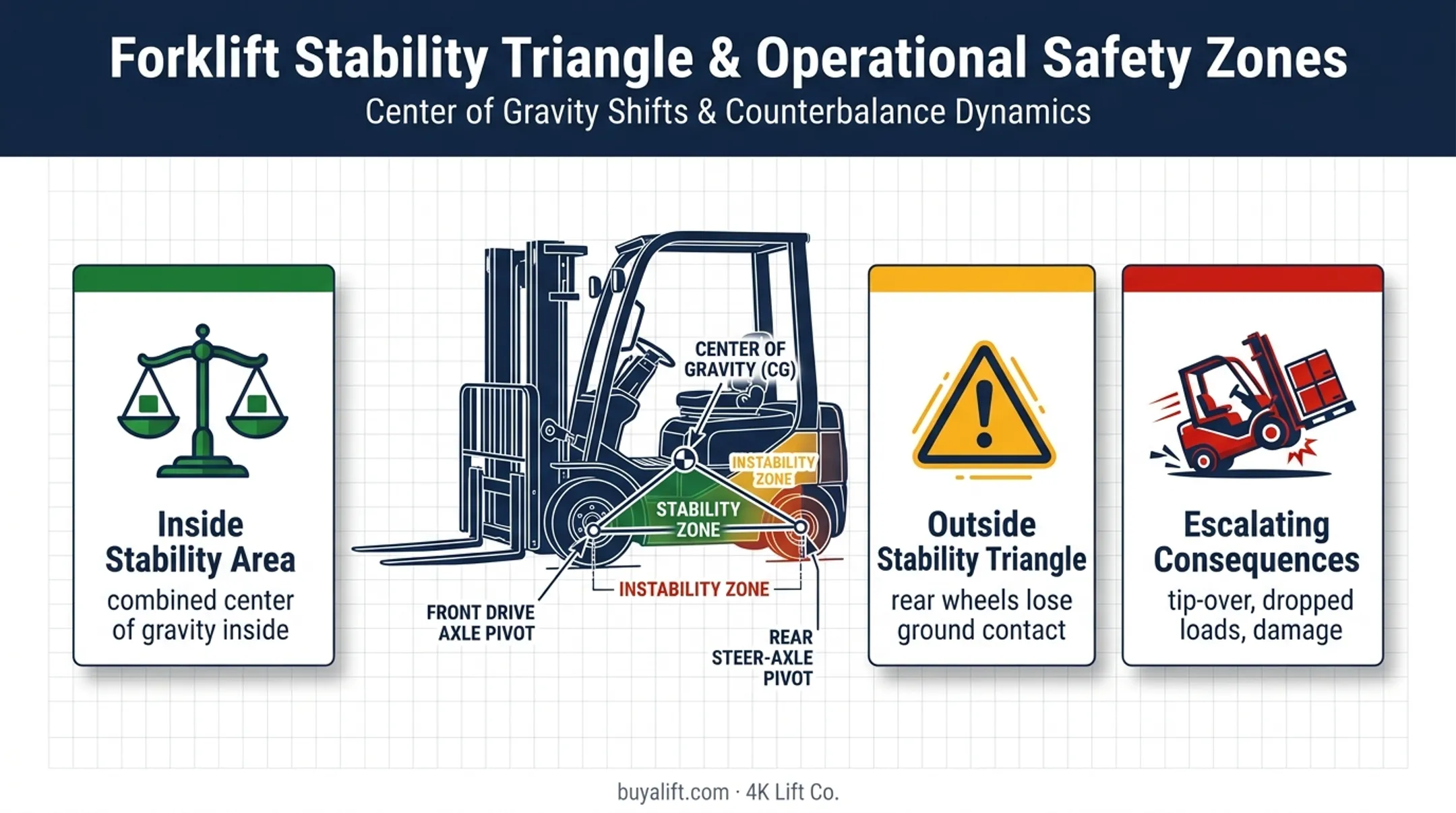

Exceed the rated capacity, and the combined center of gravity moves outside the truck's stability triangle. Once that happens, the consequences escalate fast:
- Forward or lateral tip-over as the rear wheels lose ground contact
- Loss of steering control when rear tires lift off the floor
- Dropped or shifting loads, especially with unstable or suspended cargo
- Mast and fork damage, bent tines, fatigued chains and rollers
- Hydraulic stress, including degraded seals over repeated overloads
- Operational fallout, including collisions, worker injuries, regulatory exposure, and costly downtime
Several common misreadings of the plate contribute to these outcomes:
- Treating the nominal rating as an absolute number for any load
- Assuming a visually bigger or heavier truck is automatically safer
- Ignoring the weight and load-center shift an attachment introduces
- Relying on an average or estimated load weight instead of a confirmed one
- Using an old plate after the truck's configuration has changed
Do not proceed if any of the following apply:
- Capacity information is missing from the truck
- Forks show visible cracks or bends
- The load is unstable or unbalanced
- An attachment's rating is unknown
- Operating conditions aren't represented on the data plate
Conclusion
Forklift capacity is a conditional limit, not a fixed number. What you can safely lift at any moment depends on several factors working together:
- Load weight and load center
- Lift height
- Attachments
- Machine condition
- Operating environment
The data plate is always the starting point. Anything unusual, whether it's an oversized load, a new attachment, or an unfamiliar truck, calls for a second look before the forks go under it.
Informed equipment selection matters just as much as careful operation. If you're evaluating a forklift purchase, 4K Lift Co.'s inspected and reconditioned inventory, backed by full mechanical teardown and load testing before pricing, gives buyers a clearer starting point than a brochure number alone.
Frequently Asked Questions
How do I calculate the load capacity of a forklift?
Start with the truck's data plate, then account for your actual load center, lift height, and any attachments. For anything unusual, have a qualified professional verify the calculation before lifting.
Where can you find the weight capacity on a forklift?
The data plate, nameplate, or data tag mounted near the operator's station is the primary source. If it's missing, damaged, or illegible, stop and get manufacturer or service guidance rather than guessing.
What is the maximum lifting capacity of a forklift?
There's no single maximum across all forklifts. Capacity varies by model, load center, and lift height, so the only number that matters is the one listed for your specific truck's conditions.
How heavy is a 3-ton forklift?
The truck's own operating weight is separate from its three-ton (6,000-pound) rated lifting capacity. Check the manufacturer's spec sheet for the exact model's actual machine weight.
Does forklift capacity decrease with lift height?
Yes, commonly. Raising a load changes the combined center of gravity, and most manufacturers apply a derating schedule above 15 feet. Always check the capacity chart for your exact truck and height.
Do attachments reduce forklift capacity?
Often, yes. Attachments add weight and can extend the effective load center, which may require derating the truck. Check the attachment's documentation and the updated data plate before lifting.
